A practical guide for restaurant managers, catering directors, and foodservice operators comparing restaurant layouts, space and cost trade-offs, safety considerations, and code requirements for new, renovated, or delivery-only kitchens.
What is a commercial kitchen layout?
A commercial kitchen layout is the physical arrangement of storage, preparation, cooking, service, and cleaning areas within a food production space.
The layout determines how ingredients, staff, and finished dishes move through the kitchen and that movement pattern has a direct, measurable effect on ticket times, labor efficiency, injury rates, and health code compliance.
There is no universal "best" layout. The right configuration depends on menu complexity, order volume, available square footage, and whether the kitchen serves dine-in guests, delivery orders, or both.
Why layout decisions carry more weight than they appear to
Layout is easy to treat as a design detail decided late in the planning process. The data suggests it deserves earlier, more deliberate attention.
Food service workers experience tens of thousands of nonfatal workplace injuries every year. BLS Survey of Occupational Injuries and Illnesses data put the figure for full-service restaurants alone at roughly 91,800 in a recent reporting year.
A Texas Department of Insurance ergonomics fact sheet summarizing NIOSH-adjacent research notes that repetitive movements, awkward postures, and improperly designed workstations and equipment drive much of this risk, a gap tied directly to counter height, equipment placement, and aisle design.
On the cost side, the National Restaurant Association's 2026 State of the Restaurant Industry report points to continued pressure on labor and food costs industry-wide, which makes wasted motion and inefficient staffing patterns a compounding expense rather than a minor inconvenience. See our breakdown of how to calculate restaurant labor cost for how these numbers add up.
Layout, in short, is one of the few decisions an operator makes once that continues to affect cost and safety outcomes for the life of the kitchen.
5 layout types compared

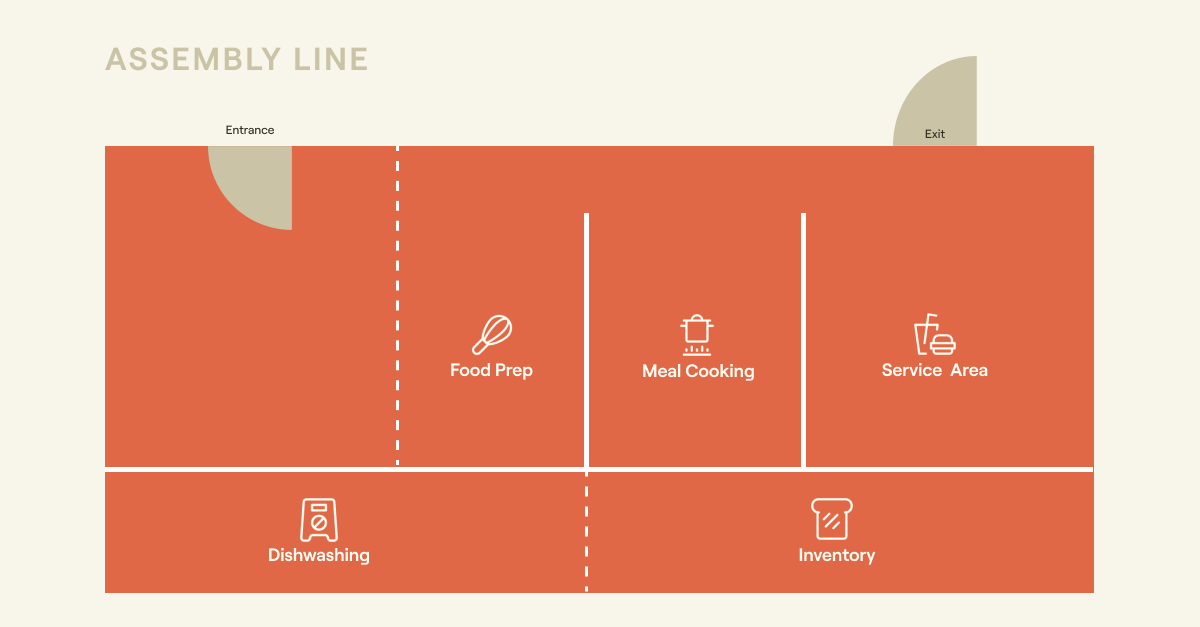

1 - Assembly line layout
Ingredients are prepped at one end of a linear path, move through cooking, and finish at plating or packaging. Storage and warewashing sit behind the line, out of the main flow.
- Works well when: the menu is focused and order volume is high and predictable, such as catering production or a single-concept delivery kitchen.
- Trade-off: the fixed sequence makes menu changes harder to accommodate without redesigning the line.
2 - Zoning layout
The kitchen is divided into distinct areas by dish type or cooking method (grill, sauté, cold prep, and so on) each typically outfitted with its own equipment.
- Works well when: the menu is broad and multiple dish types need to move through the kitchen at once, which is common in full-service restaurants.
- Trade-off: each zone requires its own equipment and utility infrastructure, which raises both build and ongoing utility costs.

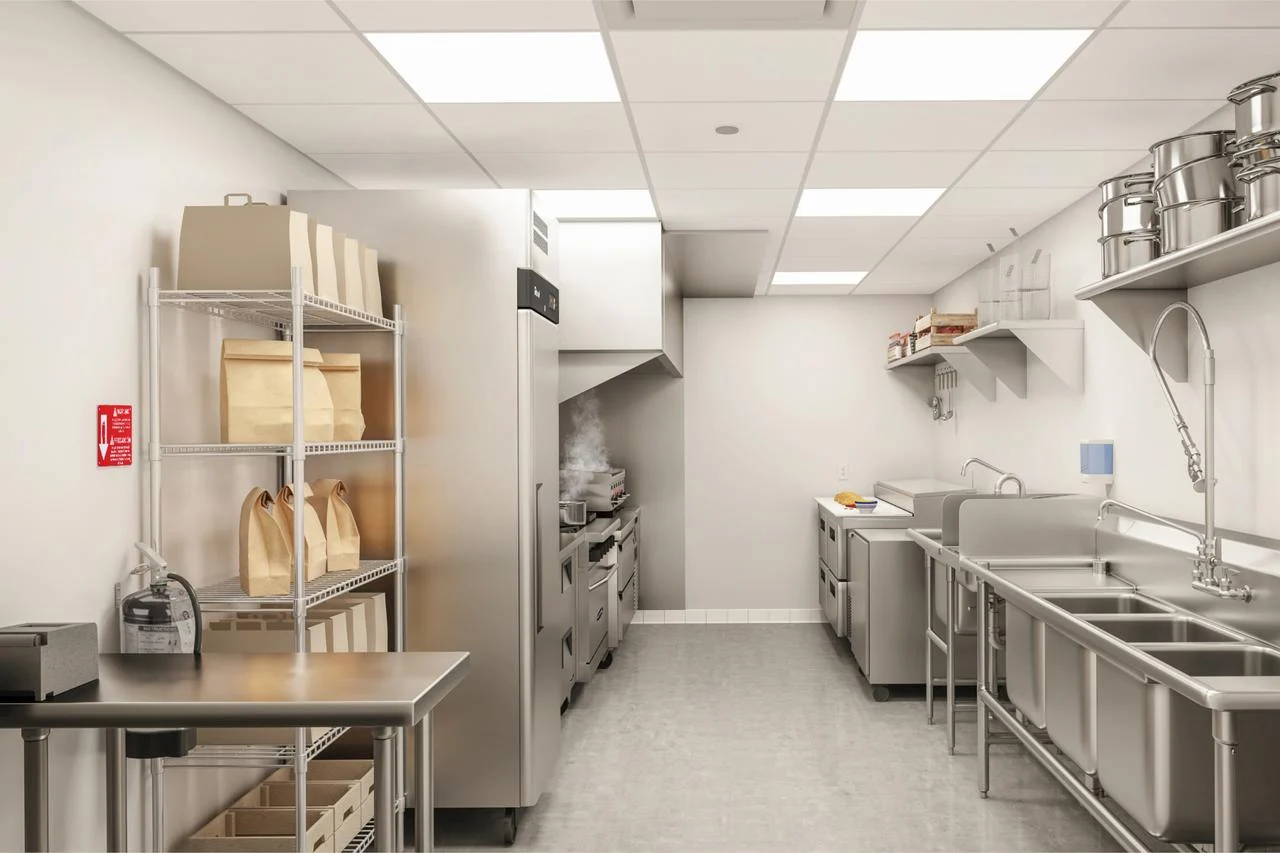

3 - Galley layout
Stations line two parallel walls, the same configuration used on ships and food trucks, where square footage is limited.
- Works well when: the available space is small, which makes it the default choice for most ghost kitchens and compact commissaries.
- Trade-off: parallel stations can feel cramped at peak volume, which may slow prep times without careful staffing.
4 - Island layout
Core cooking equipment sits in a central island; prep and warewashing are pushed to the perimeter.
- Works well when: the cooking process itself is part of the guest experience, and the operation has the square footage to support it.
- Trade-off: without a fixed linear sequence, staff need to coordinate more actively across stations.
5 - Open kitchen layout
The wall between kitchen and dining room is removed, giving guests direct visibility into food preparation and cooking.
- Works well when: the dining concept is built around transparency and atmosphere.
- Trade-off: noise, odor, and visible mess can affect the guest experience, and prep-to-cooking sequencing needs careful management to avoid cross-contamination risk under FDA Food Code §3-302.11.
Decor trends and equipment by layout type
The core components every layout has to account for
Regardless of which layout an operator chooses, every commercial kitchen is organized around the same five functional areas.
What changes is how much space each gets and how they're positioned relative to one another.
Storage
Divided first between food and non-food items, then subdivided into refrigerated versus dry storage, and disposables, cleaning supplies, and dishware, respectively.
Chemical products should never be stored above food, prep equipment, or dishware, a common point of failure in health inspections.
Food preparation
Where raw ingredients are cut, chopped, and seasoned. Meat preparation is commonly separated from other prep, and FDA Food Code §3-302.11 specifically addresses separating raw proteins, produce, and ready-to-eat foods to prevent cross-contact. A core part of any food quality control program.

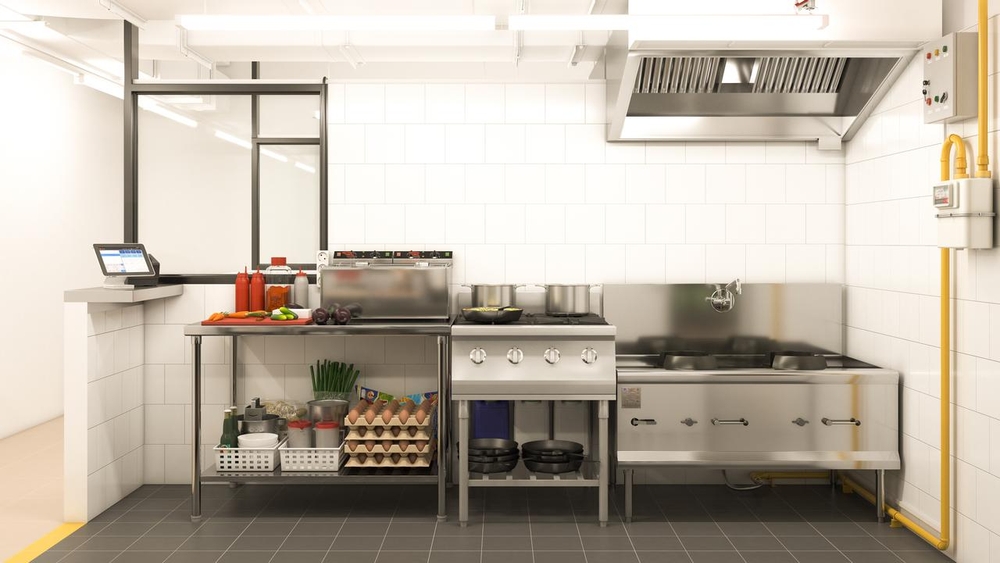

Cooking
Equipped with the stoves, ovens, and fryers the menu requires, and positioned between prep and service so the workflow moves in one direction.
Service
The handoff point between kitchen and customer. Positioning it close to the dining area (or, in a delivery kitchen, close to the packaging and courier pickup point) minimizes the distance food travels after it's finished.
Warewashing
Needs dedicated sinks, dish racks, and cleaning appliances, positioned for easy access from both the kitchen and service side to keep clean equipment cycling back quickly.
Planning considerations breakdown
Three variables do most of the work in determining which layout fits a given operation.
1) Available square footage
Open and island layouts need meaningfully more space to function without feeling cramped. Assembly line and galley layouts make better use of a constrained footprint, which is why galley setups are the default in most delivery-only kitchens.
Threshold to plan around: full-service kitchens typically require roughly 2,000–2,500 sq ft to support a varied menu and dine-in service, while a delivery-only kitchen can operate in 150–400 sq ft.
2) Menu complexity and order volume
A focused, high-volume menu is well served by an assembly line or galley layout.
A broad, varied menu generally needs the flexibility zoning or island layouts provide, since a single linear sequence can't efficiently support many dish types at once.
3) Code compliance and safety
No layout is viable if it fails inspection. Key requirements to plan around from day one:
- Cross-contamination separation: FDA Food Code §3-302.11 requires physically separated or sequenced prep surfaces for raw proteins, produce, and ready-to-eat foods.
- Fire and ventilation clearance: NFPA 96 governs hood coverage and clearance around cooking equipment. Maximizing equipment density for throughput can violate these minimums, forcing a redesign that reduces planned capacity.
- Storage temperature: Dry storage must stay below 70°F under FDA Food Code §3-305.11.
- Licensing: Confirm the required permits before finalizing a layout: typically a Certificate of Occupancy, food service license, food handling permit, and, where applicable, a liquor license.
- Food safety management system: Many jurisdictions expect a documented HACCP plan identifying hazard points at each production stage, and the layout should support the control points that plan defines. See what HACCP certification typically costs before finalizing your design budget.
Because code review often happens after a floor plan is drawn, having a licensed kitchen designer or local health inspector review the layout before construction begins is far cheaper than discovering a clearance violation during inspection.
Layout planning roadmap
Step 1: Define the operational model
Confirm whether the kitchen will serve dine-in, delivery, or both. This single decision eliminates two or three layout options immediately.
Step 2: Map the menu to a workflow
List every dish and the stations it touches.
A menu that repeatedly funnels through the same two or three stations points toward an assembly line or galley layout; a menu with many distinct preparation paths points toward zoning.
Step 3: Confirm square footage against the shortlist
Cross-reference the space available against the footprint each candidate layout realistically needs, including clearance and aisle width, not just equipment footprint.
Step 4: Pressure-test against code before finalizing
Run the draft layout past FDA Food Code separation requirements and NFPA 96 clearance minimums before committing to a build-out. This step catches the majority of costly redesign issues.
Step 5: Build in ergonomic standards, not just code minimums
Counter heights, aisle widths, and placement of frequently used equipment affect injury risk independent of code compliance, a point NIOSH-backed ergonomics research makes directly.
Addressing this at the design stage is markedly cheaper than retrofitting after injury claims accumulate.
Step 6: Validate with a walk-through before construction
Tape out the layout at full scale, if possible, and walk the intended workflow with kitchen staff before finalizing drawings. Issues that aren't visible on paper are often obvious once someone physically walks the line.
